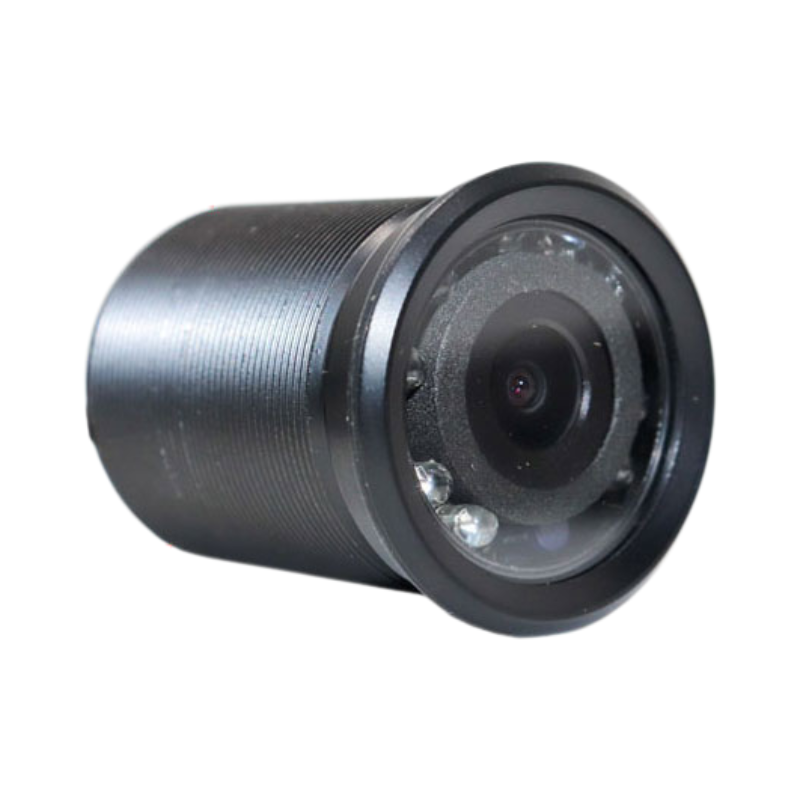

Bumper Mount Flush 1080P AHD Reversing Camera

One of our most subtle reversing cameras is the flush-fitting bumper mount type, designed for discreet and effective installation. It comes with a 28mm hole-saw to create the correctly sized hole for mounting. The camera is inserted into the hole and secured with a locking ring that twists onto the threaded body. Angled spacers are included to adjust for any tilt in the mounting surface. This camera is compatible with AHD monitors or DVRs that can accept 1080P AHD inputs, providing high-definition video quality.

Key Features

• Subtle Flush-Fitting Design: Discreetly mounts into the bumper for a clean look.
• Easy Installation: Includes a 28mm hole-saw and threaded body with a locking ring for secure mounting.
• Adjustable Mounting: Comes with angled spacers to compensate for tilted mounting surfaces.
• High-Quality Image Sensor: 1/2.7 CMOS 2399 sensor with 1920(H) * 1080(V) resolution for clear images.
• Night Vision: Equipped with 10 IR LEDs for night vision up to 10 meters.
• Waterproof: Rated IP68 for durability in various weather conditions.
• Wide Viewing Angle: 95°(D) x 75°(H) x 60°(V) for comprehensive coverage.

Technical Specifications

• Image Sensor: 1/2.7 CMOS 2399
• Effective Pixels: 1920(H) * 1080(V)
• TV System: PAL
• Lens: 1.9mm
• Minimum Illumination: 0 Lux (LED ON)
• IR LED: 10 pcs
• Night Vision Distance: 10 meters
• Waterproof Rating: IP68
• Viewing Angle: 95°(D) x 75°(H) x 60°(V)
• Power Voltage: 12V
• Current Consumption: 150 mA
• Operating Temperature: -20℃ to +70℃

Additional Information

This flush-fitting bumper mount camera is perfect for those seeking a subtle and effective reversing solution. Designed to fit AHD monitors or DVRs that accept 1080P AHD inputs, it provides high-definition video quality and excellent night vision capabilities. The included installation tools and adjustable mounting options ensure a secure and precise fit on various vehicles.
