Black Reversing Camera | Sony CCD | 4 pin connector | Stainless Steel bracket

£78.00 GBP Ex Vat
£78.00 GBP
Shipping calculated at checkout.
Brand: Economy Range
Availability: Low stock: 10 left
Brand Code: CAM022-V2
£78.00 GBP Ex Vat
£78.00 GBP

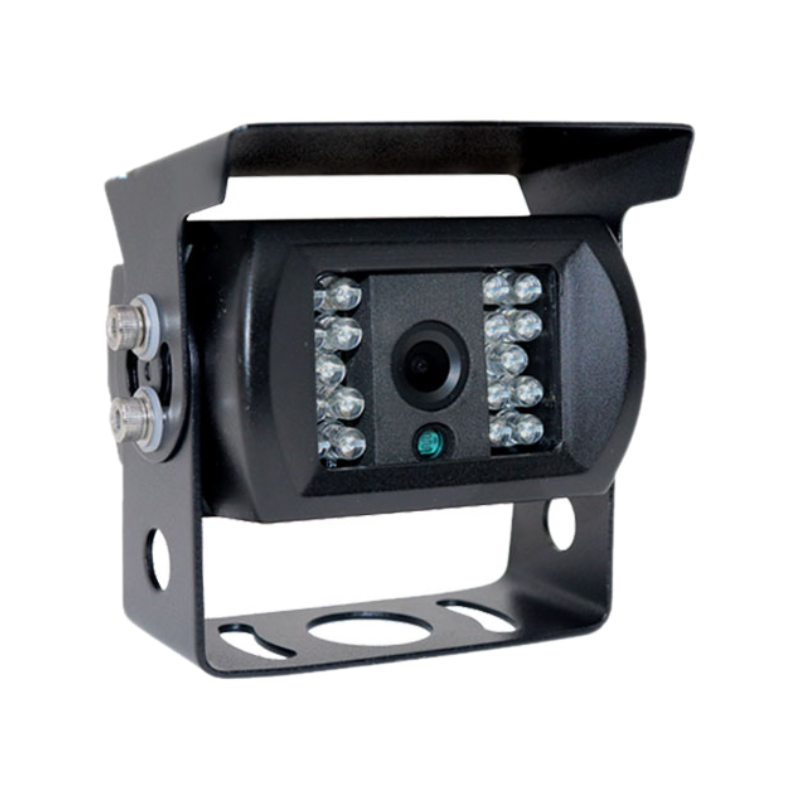

Bracket reversing cameras, such as this one, remain the most popular style for motorhomes, caravans, HGVs, and vans. This camera features a corrosion-resistant stainless steel bracket with a durable matt black finish. It is equipped with a high-quality 1/3" Sony CCD 700TVL image sensor, providing excellent day and night picture quality. The camera also includes night vision IR LEDs that automatically activate in low light conditions, ensuring clear visibility without distracting other drivers.

Key Features

  • Corrosion-Resistant Stainless Steel Bracket: Painted matt black for durability, outlasting gloss finishes.
  • High-Quality Image Sensor: 1/3" Sony CCD 700TVL sensor for superior day and night picture quality.
  • Night Vision IR LEDs: Automatically activate in low light, invisible to other drivers, ensuring clear night-time visibility.
  • Mirror Image Output: Essential for accurate display of obstacles, mirroring the view as seen through a rear-view mirror.
  • Waterproof to IP68: Designed to withstand all weather conditions.
  • 120-Degree Viewing Angle: Diagonally measured for comprehensive rear visibility.
  • 4-Pin Screw Connector: Known as an aviation connector, providing a secure and waterproof connection.

Technical Specifications

  • Image Device: 1/3 SONY 811 CCD 960H 700TVL
  • TV System: PAL
  • Effective Pixels: 976*582
  • Scanning System: 2:1 Interlace
  • Sync. System: Internal
  • Resolution: 700 TV lines
  • Minimum Illumination: 0 Lux (IR LEDs on)
  • Video Output: 1.0vp-p, 75 Ohm
  • Gamma Consumption: 0.45
  • AGC: Auto
  • S/N Ratio: Better than 48dB
  • White Balance: Auto
  • Electronic Shutter: 1/50 Sec-12.5μSec (PAL)
  • BLC: Auto
  • Current Consumption: 100mA
  • Waterproof: IP68
  • Infrared LEDs: 18 IR LEDs for night view

Additional Information

The camera uses a high-quality stainless steel bracket, proven to resist corrosion significantly longer than mild steel alternatives, which often rust within a few months. The image sensor, a critical component, detects and captures detailed images, with larger sensors like the 1/3" Sony CCD 700TVL offering the best picture quality available for reversing cameras. This advanced technology ensures reliable performance and exceptional image clarity, making it a top choice for demanding applications.
