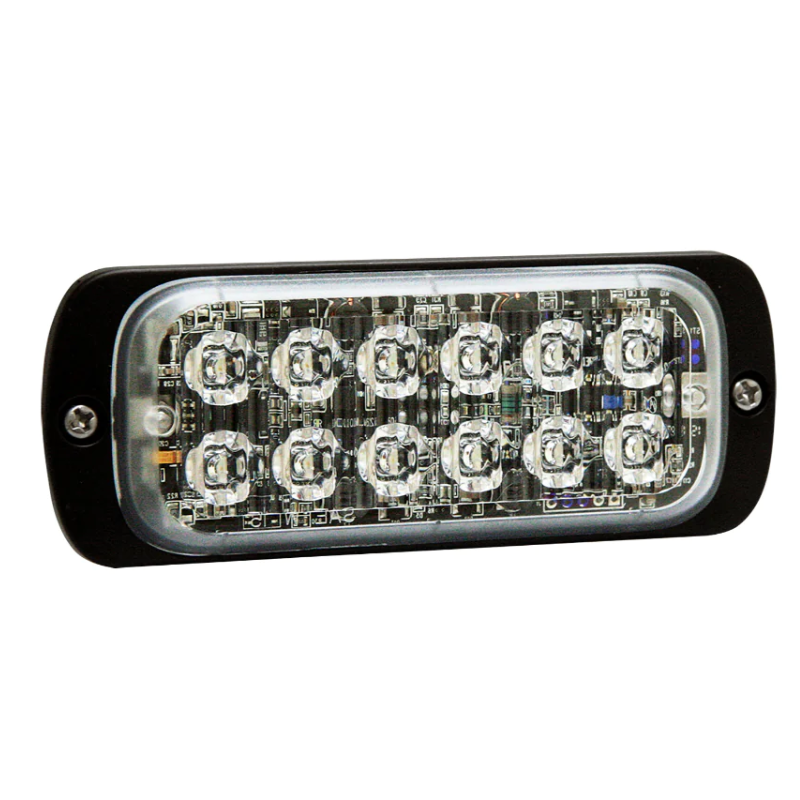

The Thin Series ST26 Red LED Directional Lamp combines sleek design with robust functionality. This super thin, ECE R65 approved lamp features 12 high-power LEDs, offering 25 flash patterns for versatile signalling. It's designed for longevity, with 100,000 rated hours for the LEDs, and ensures safety with reverse polarity protection. The lamp's slim base and aluminum construction provide both aesthetic appeal and efficient heat dissipation, making it a durable choice for various environments.

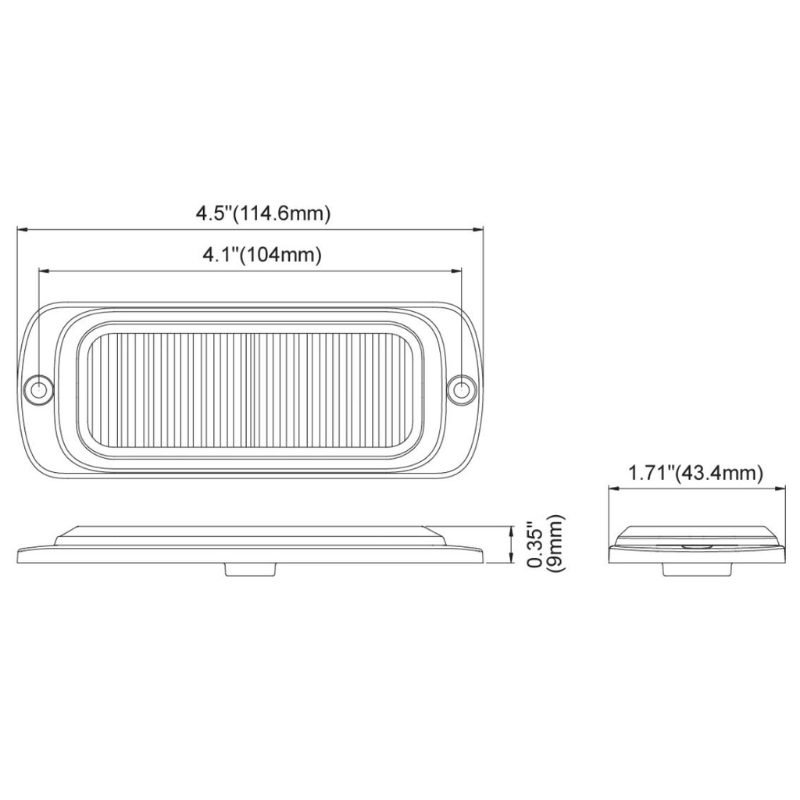

Dimensions: 114.6mm (L) x 43.4mm (H) x 9mm (D) ---- 104mm in length from hole centres
Features:
- 9mm super low-profile thickness
- 12/24V
- 25 flash patterns
- 100,000 rated hours of long-life LEDs
- Multi-units synchronization in simultaneous or alternating flash
- Reverse polarity protection
- Weatherproof and shock proof

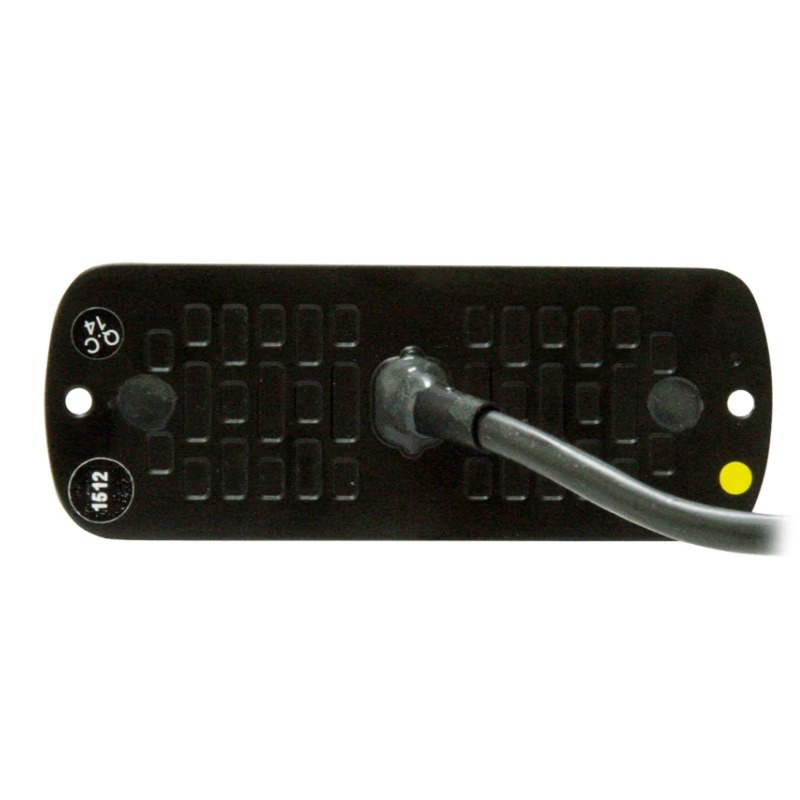

- Slim base design
- Aluminium base for durability and heat dissipation
- Part no. - LEDDST26
Specifications:
- Approval: SAE J595 Class 1 (R,A,B,W) ; ECE R65 Class 2 (A,B) ; ECE R10
- LEDs: 12 x high power LEDs
- Flash Patterns: 25
- Voltage: 12/24V
- Average Current: 0.78A @ 12V / 0.39A @ 24V (varies with flash pattern)
- Average Power: 9.25 Watts (varies with flash pattern)
- Max Current: 1.56A @ 12V / 0.78A @ 24V
- Max Power: 18.5 Watts
- Wires: Red-Vcc: 25cm (20AWG) / Black-GND: 25cm (20AWG) / White-Low Power: 25cm (20AWG)
- Recommended Fuse: 3A
- Max to Syn Together: Over 15 lamps

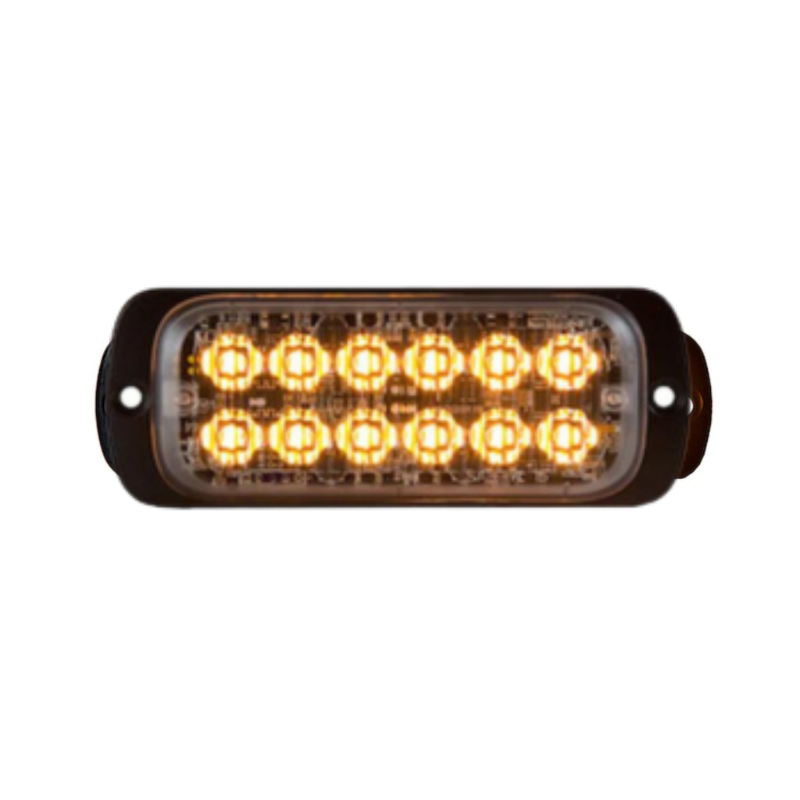

- Colours Available: amber, blue, clear or red
